PSR Gearboxes

In Line Series

7 Steps (sizes)

Up to 295,030 ft-lbs

Up to 1,206.9 HP

Right Angle Series

5 Steps (sizes)

Up to 158,580 ft-lbs

Up to 295.0 HP

Input Options

High Speed Input Shafts

Available in several sizes, these shafts are suitable for both low and high transmissions of power, such as means of multiple belt drives

Input Adapters for Motors

Adapters available for both electric and hydraulic motors, such as IEC, NEMA, and SAI brands

Multi-Disc Brakes

Plan-Star’s hydraulically operated brakes can be installed to provide fail-safe characteristics capable of static and dynamic braking purposes in the event of an emergency.

Accessories

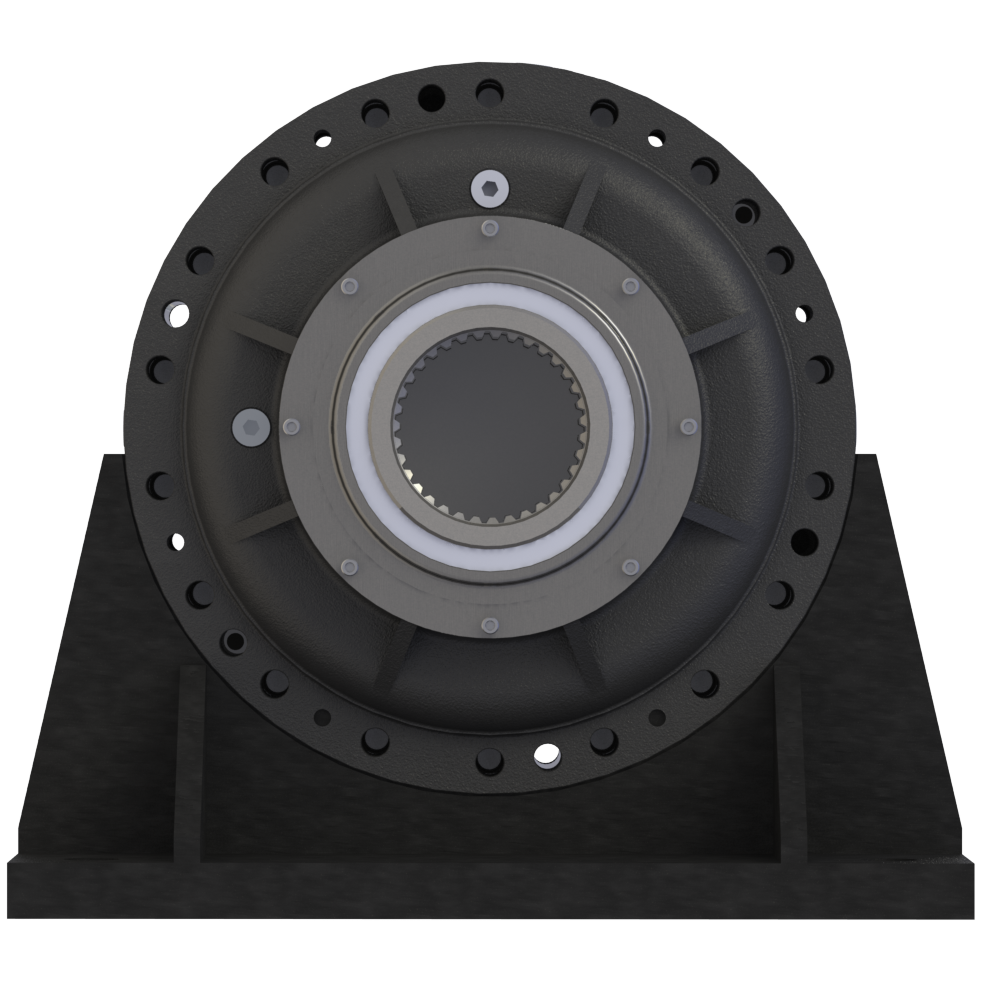

Foot Mounts

Both In-Line and Right-Angle gearboxes can have foot-mounts installed for greater stability

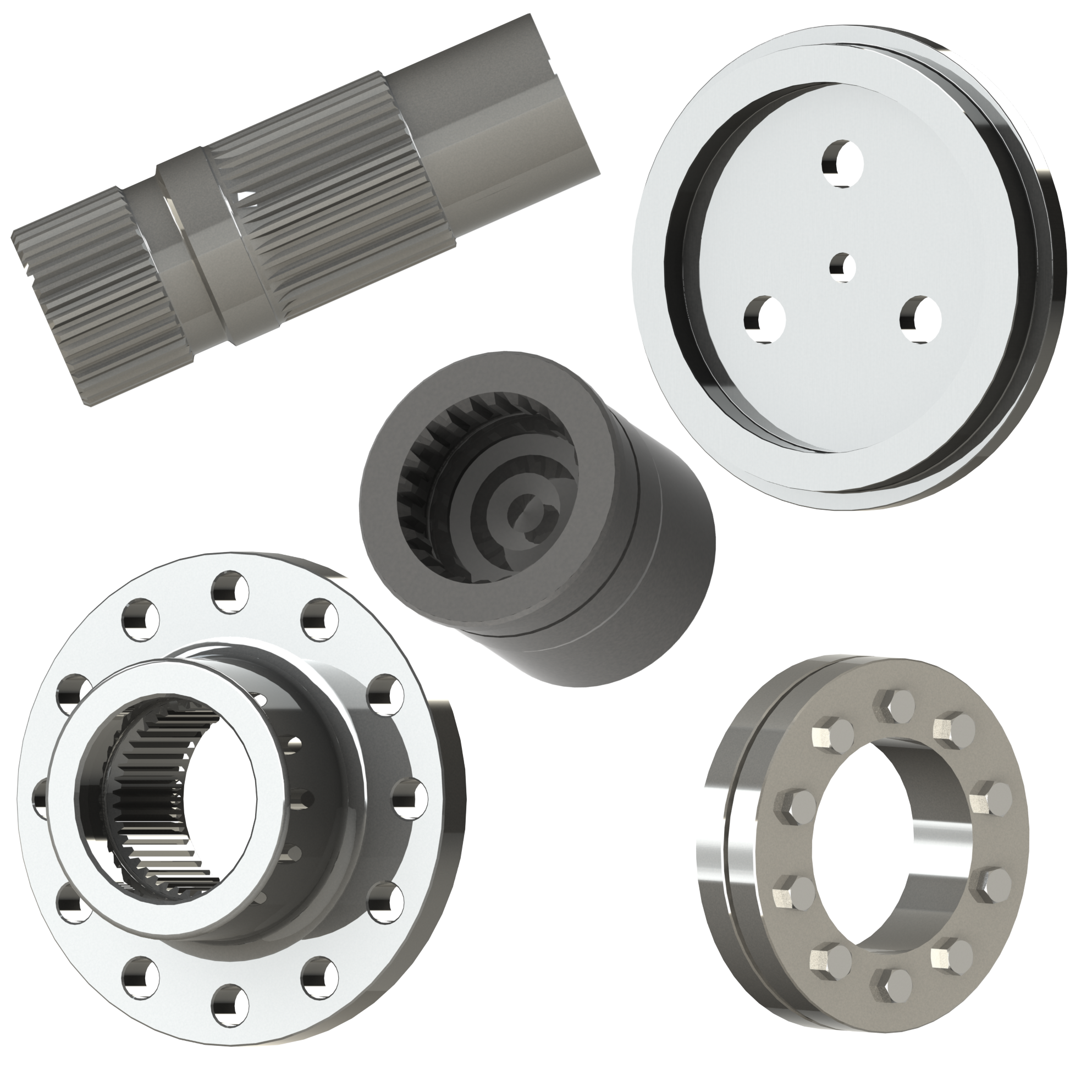

Output Accessories

Drive Flanges, Fixing Flanges, Bushings, Shrink Discs, and Spline Rods for all output types

Mechanical Disconnects

Up to 1400 ft-lb transmissible torque, 4000 rpm for key and splined input shafts
